Hydraulic Grab Buckets

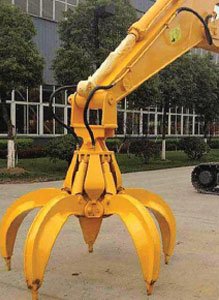

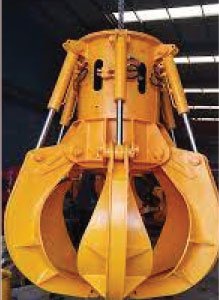

ORANGE PEEL GRAB & EXCAVATORS GRAB
For Handling Core Scrap, Pig-iron, Stones, Slag, Baled Scrap, Oa Scrap, Green Pellets, Blast Furnace...
Piled And Bulk Material Density Up To 3 T/m3 (± 15%)
| TECHNICAL FEATURES | ||||
|---|---|---|---|---|
| SIZE | VOLUME CAPACITY (M³) | DEAD WEIGHT GRAB (kg) | CRANE (ton) | MOTOR (kw) |
| ICT-500 | 0.5 | 1850 | 5 | 22 |
| ICT-750 | 0.75 | 2000 | 5 | 22 |
| ICT-1000 | 1 | 2100 | 5 | 22 |
| ICT-1500 | 1.5 | 2450 | 10 | 22 |
| ICT-2000 | 2 | 3300 | 10 | 30 |
| ICT-2500 | 2.5 | 4200 | 15 | 30 |
| ICT-3000 | 3 | 4800 | 20 | 37 |
| ICT-3500 | 3.5 | 5500 | 20 | 37 |
| ICT-6000 | 6 | 7500 | 30 | 37 |
CLAMSHELL GRAB BUCKET
1. WIRE ROPE MECHANICAL MILL SCALE TYPE
2. TWO ROPE CLAMSHELL
3. ELECTRO HYDRAULIC TYPE
4. SINGLE ROPE CLAMSHELL
5. FOUR ROPE CLAMSHELL
| TECHNICAL FEATURES | ||||
|---|---|---|---|---|
| SIZE | VOLUME CAPACITY (M³) | DEAD WEIGHT GRAB (kg) | CRANE (ton) | MOTOR (kw) |
| ICT-500 | 0.5 | 1900 | 5 | 22 |
| ICT-750 | 0.75 | 2900 | 5 | 22 |
| ICT-1000 | 1 | 3300 | 5 | 22 |
| ICT-1500 | 1.5 | 3900 | 10 | 22 |
| ICT-2000 | 2 | 4200 | 10 | 30 |
| ICT-2500 | 2.5 | 5000 | 15 | 30 |
| ICT-3000 | 3 | 5500 | 20 | 37 |
| ICT-3500 | 3.5 | 6500 | 20 | 37 |
| ICT-6000 | 6 | 7000 | 30 | 37 |
