1QC AND 2QC SIDE GATE SYSTEM AND ITS SPARE
Ladle Slidegate System
QC Slide Gate Systems/ Hydraulic Operated Slide Gate
The ladle slide gate system is a crical piece of flow control equipment in liquid steel casng. The service life of the slide gate plate is a liming factor to achieve performance and is greatly dependent on the type of slide gate mechanism used. A new generaon slide gate system is the key to achieving longer plate service life and hence higher producvity and more economical operaon.

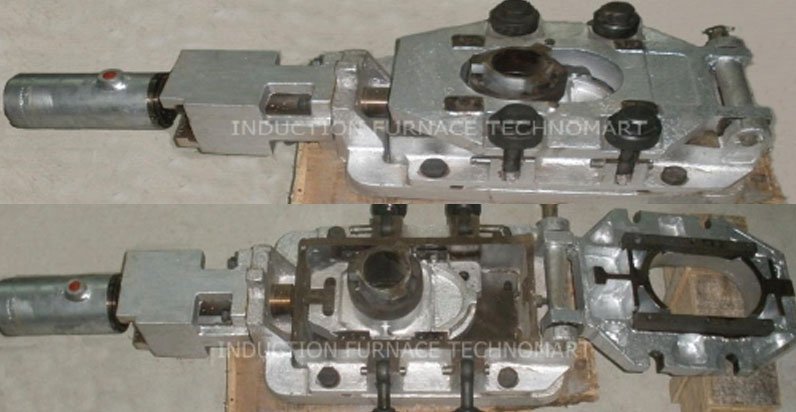

Complete Slide Gate System type 1QC & 2QC
Adaptor frame with guide bush
Housing with adjus
Fixed plate holder with eccentric clamping device
Slider assembly with gliders and eccentric clamping device
Housing cover with gliding rails and protection tube & pin
Nozzle Holder
Cylinder Bracket
Centering Ring
Extension Rod
Eye bolts and expansion compensang nuts
Protecon Box assembly
Protecon tube and pin
Gliding rails
Gliders
key and guide bush
Eccentric lamping device
Torque wrench and box spanner
Disc springs
Centering ring jig
Nozzle seng jig
Hydraulic cylinder
Flange
Coupling
Seal kits
Piston rod
